Dynamic Programming

Weiss Ch. 10.3.

DP is a common competitor to recursive D&C -- DP's job is to implement recursive problem statements more efficiently by keeping and referring to past results (not calling self to re-compute them). Often DP is used for optimization (say controlling a missle along a desired trajectory, simulating protein-folding, or to compute the best match between sequences like genes, pixel-values, phonemes...) The trick is to keep segments of solution that are already proven best and use them to create larger segments.

A simple convincing DP example is computing Fibonacci. If the recursive definition F(N) = F(N-1)+ F(N-2) is implemented literally with 2 base cases and 2 recursive calls, it is a computational disaster. Running time grows as fast as the Fib. sequence itself, or exponentially. The problem is that in computing F(N) we can see just from the definition that F(N-1) must be computed twice, and that implies an exponential number of repeat computations for F(N-k).

But the formula also can be read "To compute the next F(N), take the two you've most recently done (including base cases) and add them up." That is, remember the last two results for use this time. Updating that two-number table (DP-speak) is O(1), so get O(N) scheme for Fib(N).

The idea of a subroutine remembering formerly-computed answers is called memoizing and some languages allow designating any function a "memo function".

Another Example

The last several years, a popular assignment or lab or exam question has been of the form "Compute this recurrence using a table, not recursion." This gets at the DP idea and may be inspired by Weiss p. 463-5, which gives a literal-minded recursive program for the average-case quicksort recurrence and a DP solution as well.

The recurrence is

T(0) = 1\\ T(N) = (2/N)i=0ΣN-1 T(i) + N

or function T(N) if T==0 return 1; sum = 0; for i = 0 to (N-1) sum += T(i); return (2/N)*sum + N

but

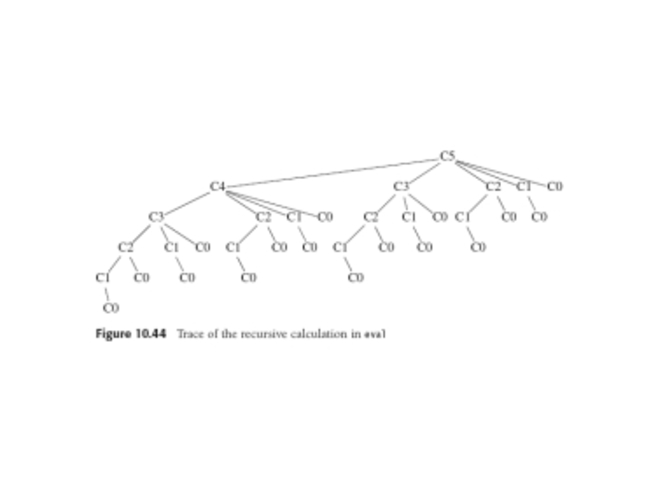

We've seen this tree before but I can't recall where... Clearly our table should contain C(0), C(1), etc. and Weiss gives a double for-loop O(N2) solution that can be improved to O(N).

Longest Common Subsequence Problem

We notice two things:
1. Suppose that two sequences both end in the same element. To find their LCS, shorten each sequence by removing the last element, find the LCS of the shortened sequences, and to that LCS append the removed element.
2. Suppose that the two sequences X and Y do not end in the same symbol. Then the LCS of X and Y is the longer of the two sequences LCS(Xn,Ym-1) and LCS(Xn-1,Ym).

These lead to equations:

LCS (Xi,Yj) = 0 if i=0 or j =0
= LCS(Xi-1,Yj-1) | xi if xi = yi
= max[LCS(Xi,Yj-1), LCS(Xi-1,Yj)] if xi ≠ yi

They in turn dictate what to put in the table and how to use it. Not difficult but... also, tracing back through the table to get the LCS is interesting... Wikipedia to the Rescue

Ordering Matrix Mpys

Consider a column N-vector A and the multiplication AATA. Done in the order (AAT)A, we get an NxN matrix times A. Done in the order A(ATA). we get A times a scalar. Hmmm.

The number of possible orders for a string of matrix multiplications can be expressed by the recurrence

T(0) = 1
T(N) = 1N-1 T(i)T(N-i)

The solutions are the Catalan numbers, which look like
1, 1, 2, 5, 14, 42, 132, 429, 1430, 4862, 16796,...
and have several nice closed forms involving factorials, binomial coefficients, or products. Asymptotically, they grow at
T(N) ≅ 4N / (N3/2 √ π). Nice article in Wikipedia.

DP solution represents the sizes and L-to-R arrangement of matrices to be multiplied with an array c, which only need be N long since after knowing the leftmost matrix's row count (stored in c[0]), we know its cols must be same as 2nd matrix's rows, etc. So
c = [3 4 5 2 7]
represents string of matrices sized (3,4), (4,5), (5,2), (2,7).

Then our optimization equation (vital for DP solution) says that the optimal solution for a subsequence of matrices running from left to right, the minimum number of multiplies Mleft, right in an optimal ordering has left < right and

Mleft,right = mini(Mleft,i + Mi+1,right + c[left-1] ⋅ c[i] ⋅ c[right])
for i such that left ≤ i < right.

There are clearly only about N2/2 different choices of left and right for Mleft,rights, so a table could work: in fact only need an upper-triangular table. Also if right-left = k, then the only Mx,y values needed to compute Mleft, right satisfy y-x < k -- that implies the order of filling up the table. For N matrices, an NxN two-dimensional table can store all the needed sub-results (and final answer) with a simple O(N3) program (Fig. 10.46).

Possibly this code might be a good control structure template for table-construction and use for the next programming project -- optimal binary search trees.

Optimal BST -- Last Project

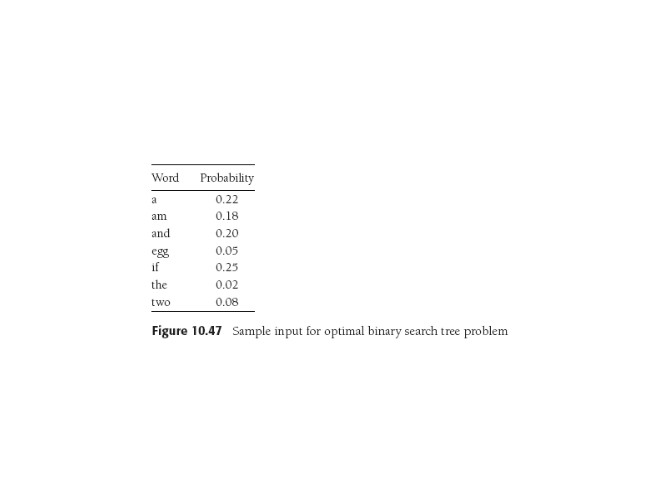

Here's a set of words and associated probabilities:

We've seen lot of search trees, including balanced and Huffman. Let's build one with this data using a greedy strategy: highest-probability nodes are highest in tree. As competition, we consider a perfectly-balanced tree. BUT....neither of these is optimal.

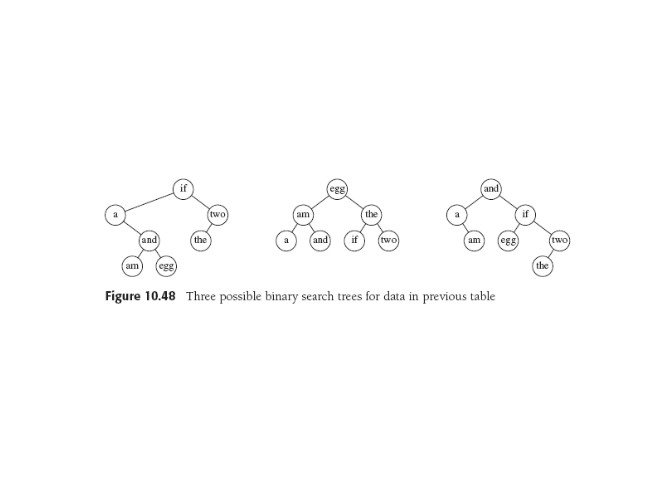

Below: greedy, balanced, optimal BSTs for above data.

Optimal? In the sense of minimimizing access cost, which we can compute probabilistically as
i ( pi (1 +di)),

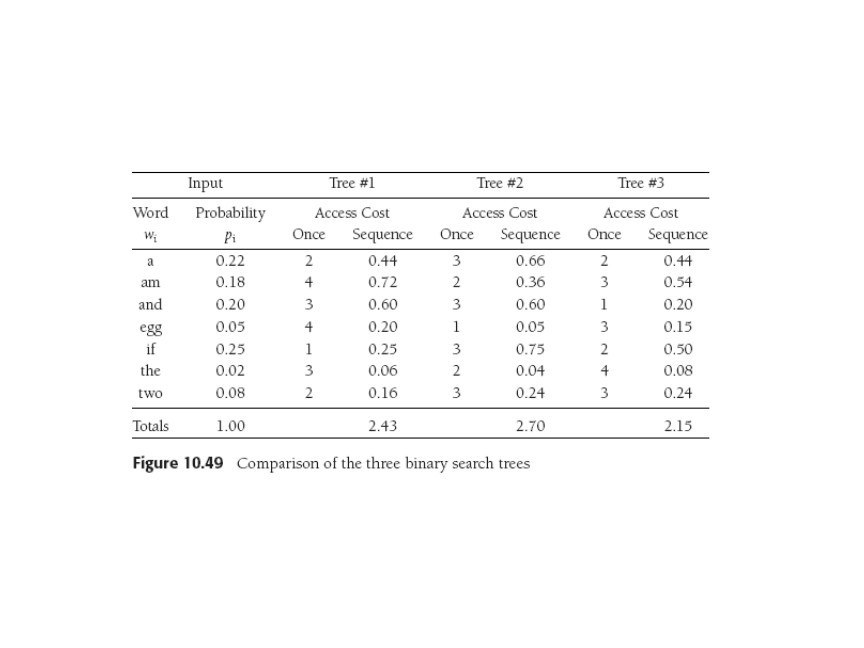

since it costs (1 +di) accesses to find an element at depth d. Here are the figures.

Finding Optimal BST

Two key observations, which sound hauntingly familiar:

1. To be BST, if the tree entries are sorted and labeled w(L) to w(R), then if the root of the optimal tree is some w(i), the left subtree must contain w(L),..., w(i-1) and the right one must have w(i+1),...,w(R).

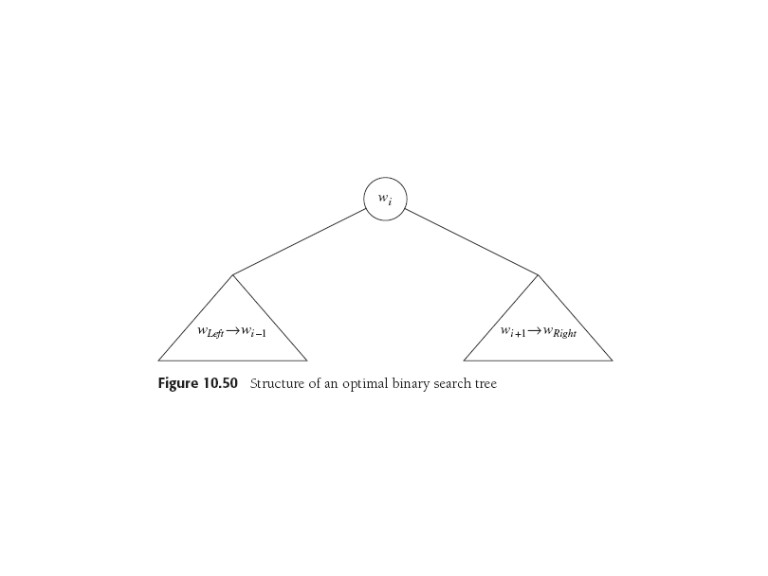

2. Both these subtrees must be optimal too (aha!), else could be replaced by better ones and overall performance would improve. Here's the picture:

From which it's not hard to derive the formula for the cost of that tree C(L, R), given we know the cost of each subtree and that it costs on the average pi extra for:

  1. the root.
  2. the added depth of 1 for all the other entries in the two subtrees now at one level down.
C(L,R) =
min(L≤i≤R) [C(L,i-1)+C(i+1,R)+∑jpj].

The last sum is over j s.t. L ≤ j ≤ R . It captures the fact that all the nodes in the left and right subtrees are deeper by one level, and the probability of the root must be added in too.

The optimal solutions to the subproblems C(.,.) above are to be found in the table, which will be upper triangular, and the other term is constant over the minimization. The minimization process computes the resulting formulae for each i and puts the minimum into the table, along with the root that produces the minimum cost. So that's the hidden work you don't see when looking at the table: each entry is from a minimization (sometimes trivial).

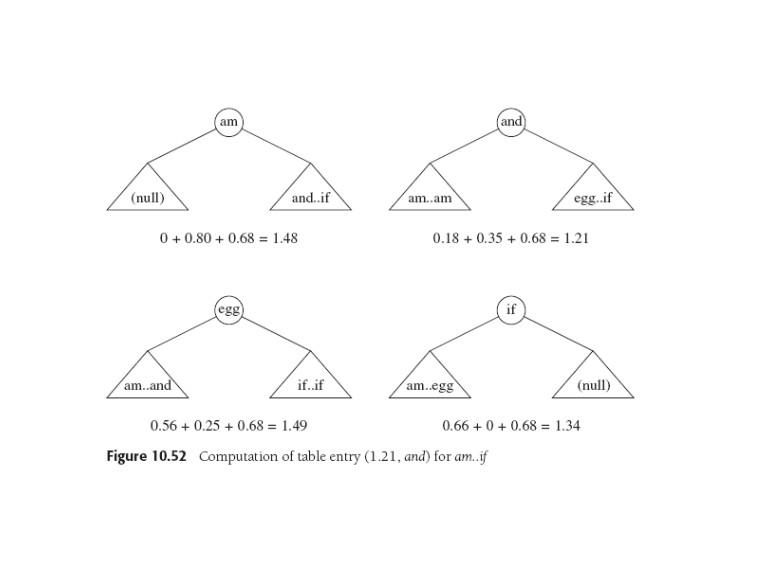

The hidden work, for example, looks like this, with the two subtree costs followed by the common
"root + 1-deeper" cost of 0.68).

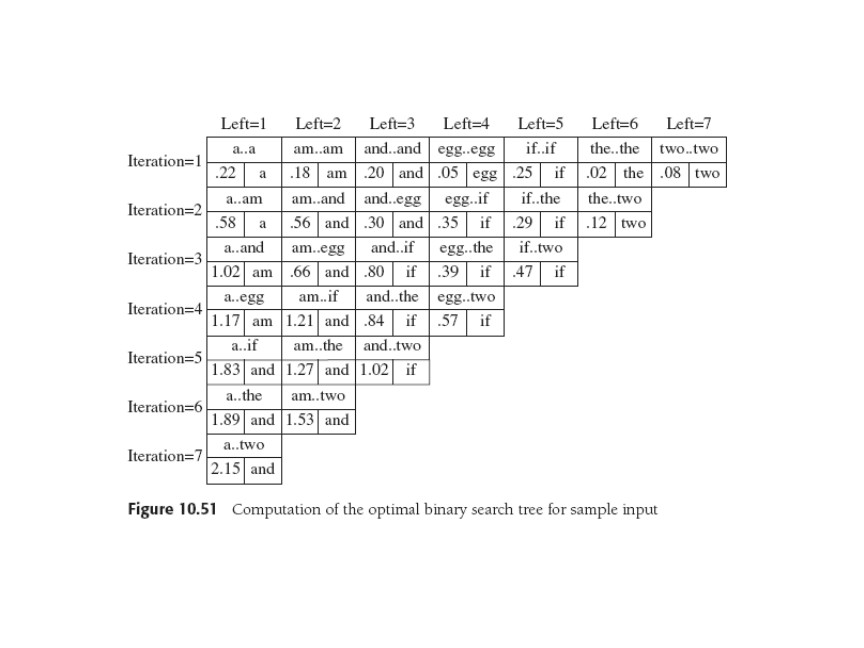

Below is the table. For every subrange of words in the original list, we have the cost and root of the optimal BST for its tree. The previous minimization produced the entry "am...if" in iteration 4.

Where does the final tree come from? It's not obvious from the table, but the root is. During the last minimization, the lowest cost is the tree that puts and at the root, so the original list tells us that a... am must be in the left subtree, and egg... two in the right. Then the table can be used to find these ranges, thus the roots of their trees, and recursively reconstruct the whole tree. Or maybe there's a way to keep all we need as we go. Perhaps the code in Fig. 10.46 will help, because this approach, like the matrix multiplication order example, is an O(N3) algorithm that may be improved to N2.
