It has become increasingly challenging to develop correct, high performance, and reliable software. Approximately, 10 new bugs are reported every day for popular applications we have come to rely upon everyday (e.g., Linux kernel, apache webserver, Firefox browser). The overall goal of my research is to exploit Moore's law and develop new hardware mechanisms that lead to better tools and programming models. The basic idea is to use hardware to expose information that enables a program to understand its own execution and react to it. This will help developers build correct and reliable software. Specifically my dissertation research focuses on exposing the information present in the memory subsystem. It also develops mechanisms that allows software to control the information flow in the system with a higher level specification (e.g., transactions) rather than through low-level operations like loads and stores. A key feature of all these mechanisms is that they provide support for fine-grain, cache block granularity (typically 10s of bytes) memory regions, which enables software to easily relate them to program-level variables. Here I discuss each mechanism and desribe their design. The sections are organized in chronological order of earliest work first.

Intra-Process Protection

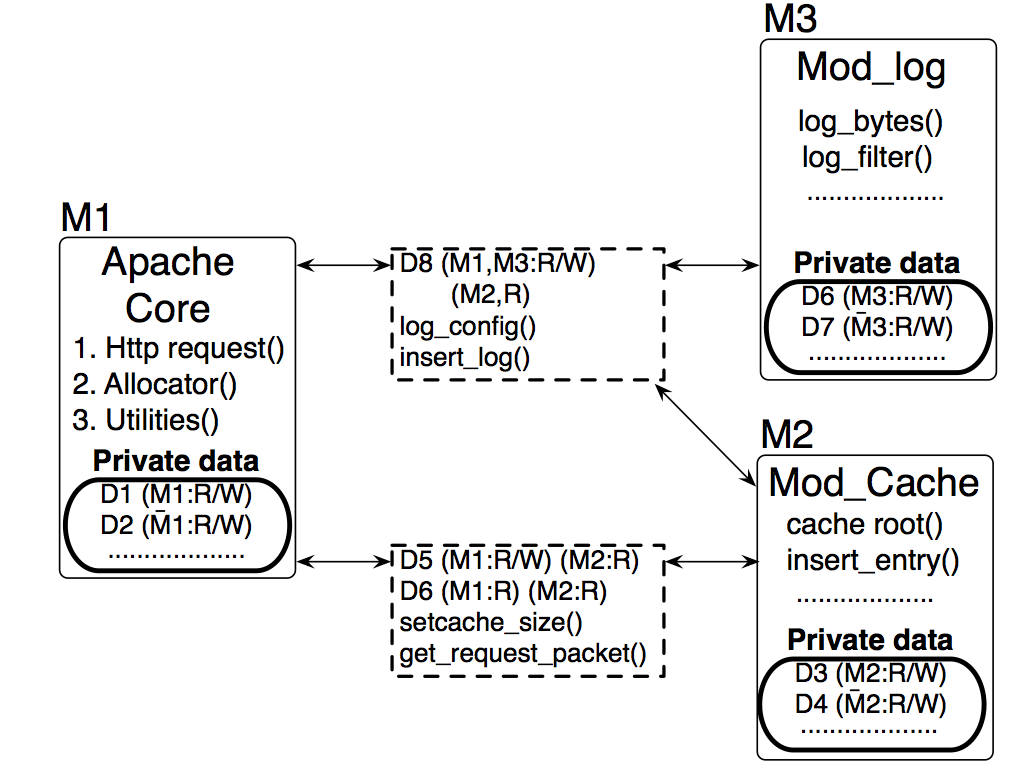

Apache webserver with modules

Fine-grain intra- and inter-thread interactions via memory make it difficult for developers to track, debug, and validate the accesses arising from the various software modules. As one example, figure presents a high-level representation of the developers' view of Apache at design time --- we use the following notations Ms indicate modules, Ds data elements, dashed interface between modules, and tuple D: (M:P) indicates module M has permission P on the memory location D. For the sake of programming simplicity and performance, current implementations of Apache run all modules in a single process and rely on adherence to the module API to enforce protection. A bug or safety problem in any module could potentially (and does) affect the whole application.

In my ISCA'10 submission, I propose Sentry, a hardware framework that enables software to enforce the protection of modules at runtime. This requires a mechanism that that will enable software to track, regulate accesses, and deliver a more robust application, are highly desirable. We developed a light-weight, multi-purpose access control scheme that is independent of and subordinate to (enforced after) the page protection in the TLB. Its implemented using a permissions metadata cache that intercepts only L1 misses and resides entirely outside the processor core. In Sentry, we maintain the invariant that a thread is allowed to access the L1 memory cache without requiring any checks i.e., L1 hits are implicitly validated and the permission cache controls whether data is allowed into the L1.

From the software's perspective, Sentry is a pluggable access control mechanism for application-level memory watching and protection. It works as a supplement to OS process-based protection and incurs space and time overhead only when additional intra-application protections are needed. The software runtime that manages the intra-application protections can reside entirely at the user level. We used Sentry to enforce a protection model for an Apache web server to safeguard the core web server's data from extension modules by ensuring that modules don't violate the library interface. We achieved this without requiring any changes to the programming model, with minimal source code annotations, and minimal performance overheads ($\simeq$13\%). We also validate the suitability of Sentry when employed for a watchpoint-based memory debugger.

Fine-grain Monitoring

Program analysis tools often require more detailed or fine grain information or control, resulting in high-overhead intrusive routines to collect information about accesses (e.g., what locations are in the cache) and threads with current support. I proposed hardware support to expose the data movement to software and reduce the overhead associated with tracking in software. Interestingly, the bulk of the support required by monitoring already exists --- the memory system is a network of caches across which hardware implicitly moves the data to satisfy the accesses issued by software. It is only required that we notify software about the hardware events triggered by an access. We propose two schemes, Alert-On-Update (AOU) and Dependence Summary Counters (DSCs).

Alert-On-Update : AOU is a lightweight mechanism that permits software to request notification about cache events. When the hardware observes activity on any tracked location, it invokes a handler and provides information about the the event. Since software controls the use and reaction to the event, one can imagine relating the event information to software semantics in various ways. AOU only requires the addition of a single bit per cache-line. At TRANSACT'05 and ISCA'07, we demonstrated that AOU is sufficient to significantly speedup software-based transactional memory. Subsequently, we have used it to develop new programmer-friendly reader-writer locks [TRANSACT'09], detect atomicity bugs [TR945] and debugger watchpoints.

Dependence Summary Counters (DSC) : Modern processors have many performance counters (e.g., L1 misses), but none is able to provide information about shared data. I proposed a set of counters at every processor that enumerate the data communication with other processors. On a coherence request the cache controller uses the id of the requesting processor and type of request (e.g., read-only, read/write) to increment the corresponding counter. We demonstrated the use of these counters to detect concurrent accesses from different threads in a TM system[ISCA'08]. The thread scheduler can also use such information to map communicating threads to nearby processors[TR945].

Data Isolation

Isolation refers to the ability to hide modifications from certain parts of program and then expose or revoke the changes in bulk based on software semantics. The classical use of isolation has been sandboxing and transactions. In sandboxing, an application uses isolation to ensure a buggy or insecure software plugin doesn't damage the integrity of the rest of the application. Transactions use isolation to ensure that concurrent speculative tasks don't see any intermediate inconsistent state. Isolation mainly requires support for versioning a location, i.e., buffering new modifications until they are committed while also maintaining current values in case the modifications are redacted.

I developed a new coherence protocol, TMESI , that implements isolation by converting the multiple levels of caches in the memory system to hold different versions of a memory block. It buffers the new values in the private cache levels close to the processor and move old values to the shared cache levels. This scheme supports low overhead commit and revocation of isolated data. A noteworthy feature of this design is that it permits multiple new versions of a location, allowing different software tasks to isolate the same location concurrently. I have developed complete (stable and transient states) snoopy [ISCA'07] and directory protocols [ISCA'08]. Our group used this isolation mechanism to demonstrate that a hardware-based optimistic transactional memory system can be realized within a traditional memory system framework, without any centralized arbitration.
